Studio User Manual / Version 2406.1

Table Of Contents

6.2.3.9 Replacing Commerce Images in Products and SKUs with CMS Images

CoreMedia Content Cloud allows you to manage images in the CoreMedia system that will be included in products and SKUs of the commerce system. You have to add a product or SKU to a Picture item.

For the Connector for HCL Commerce adding images is a two-step process. First you have to add a product or SKU to a Picture item and afterwards you have to add a specific URL to the product definition in the HCL system.

You don't have to assign every SKU to a picture content. If an SKU is not assigned to a picture content the asset management searches for the picture content assigned to the master product of the SKU or uses the default image for the site.

Assign a Product to an Image

In order to map an image from the CoreMedia system to a commerce product, you have to link from a Picture item to a product. Proceed as follows:

  1. Open the Picture content item that contains the image that you want to assign to the product.

  2. Open the Metadata tab of the content item.

  3. Find the product for which you want to define an image in the Library and drag it onto the Assigned Products link list.

Assign a product to a picture

Figure 6.37. Assign a product to a picture


Note

Connector for HCL Commerce specific

The Assigned Products property is the same that is used to fill the Asset Widget as described in Section 6.2.3.8, “Adding Content with the Asset Widget”. So, when you use both approaches in parallel, the product image in the PDP will be replaced with the content of the Asset Widget. All other occurrences of the product image (teaser, thumbnails...) will be replaced with the first image defined in the property.

Add the Image URL to the Product
Note

Connector for HCL Commerce specific feature

In order to let the HCL Commerce system request the image from the CoreMedia system you have to add a CoreMedia URL to the product definition. The URL has the following format:

http://<cmshost>:<cmsport>/blueprint/servlet/catalogimage/product/<storeId>/en_US/thumbnail/<SKUNumber>.png
http://<cmshost>:<cmsport>/blueprint/servlet/catalogimage/product/<storeId>/en_US/full/<SKUNumber>.png

You will get the URL from your system administrator.

  1. Open the product definition in the HCL Commerce Management Center.

  2. Open the Manage Product tab.

  3. Enter the appropriate URL into the Thumbnail and Full image properties.

Now, you will see the new image from the CoreMedia system displayed in the HCL Commerce.

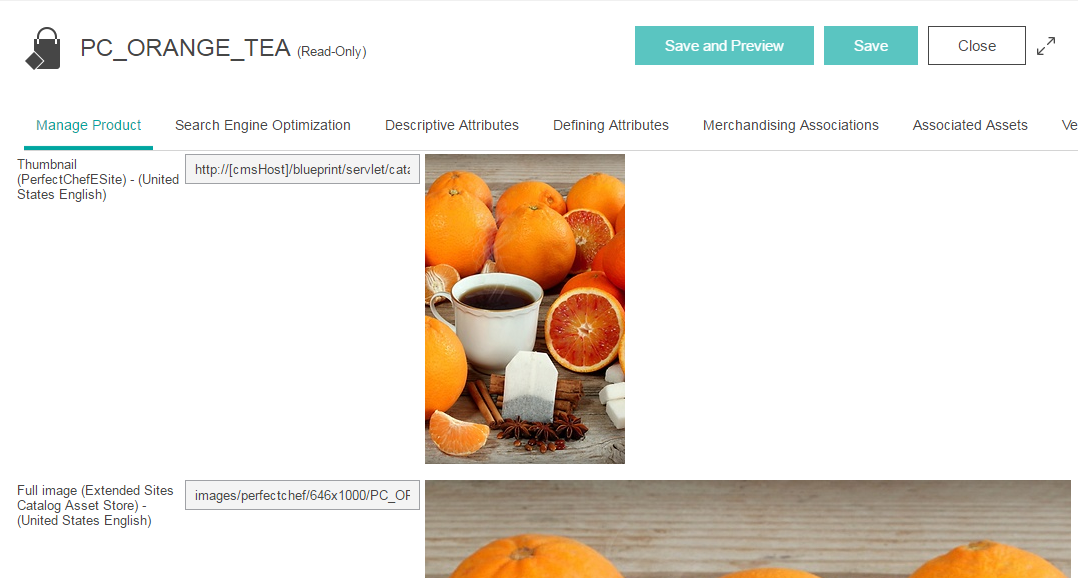

Set Product Image URLs in Management Center

Figure 6.38. Set Product Image URLs in Management Center


Note

End of Connector for HCL Commerce feature section

Adding Default Image

When there is no image defined for a category, an SKU or a master product, the system will look for a default image. Proceed as follows, to define the default image:

  1. Open the root Page content item of your site.

  2. Add a link property with name livecontext.assets.default.picture to the Local Settings field of the Settings tab.

  3. Drag the Picture item with the default image to the new link property.

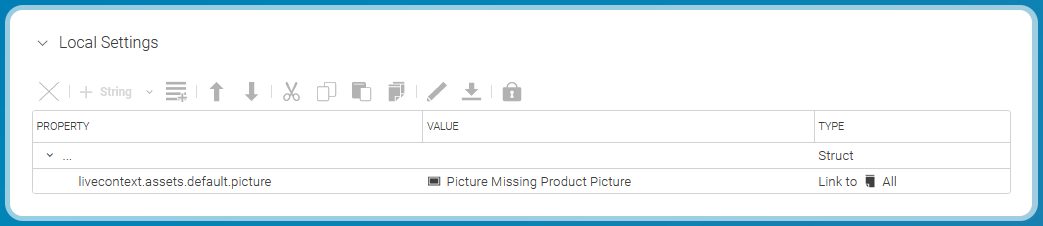

Set default catalog picture in Studio

Figure 6.39. Set default catalog picture in Studio


Now you have defined a default image for your site.
